SDS-T150

SDS-T150
  • SDS-T150
  • SDS-T150
  • SDS-T150

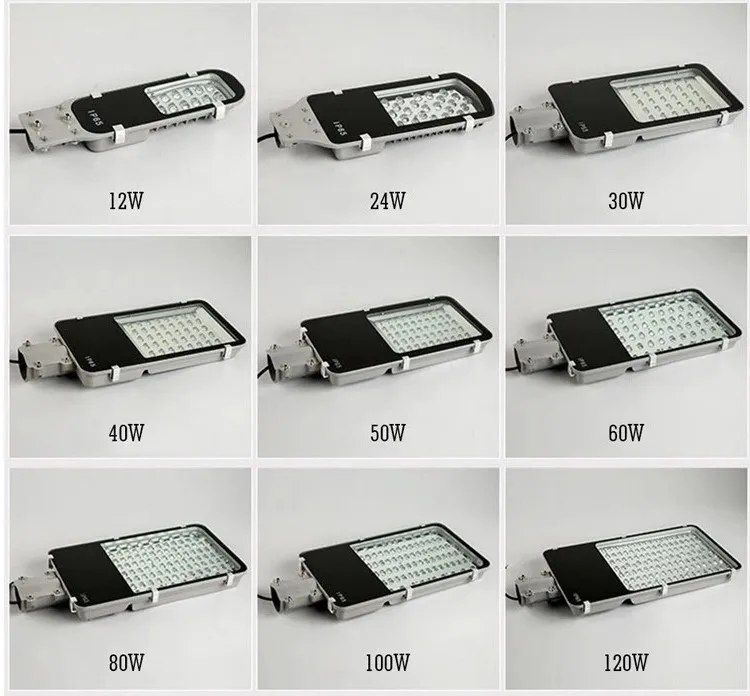

Power: 12W/20W/24W/30W/50W/80W/100W/120W/150WW Lumens: 120~150lm/w Input voltage: 100-277V AC Power Factor : 0.95 CCT : 3000~70000K IP Rank : IP65 IK Rank : 10



Details



Model Power LED&MSPSP Lens Weight Dimension () Packing Size  Installation Tube   Marks
SDS-T50 50w 50Pcs 3030  5S10P 150*75° 2.20 540*210*70 570*220*90 60   Driver room:
180*110*40
SDS-T100 100W 2*50Pcs 3030 5S10P 150*75° 3.60 595*255*75 620*280*100 60   Driver room:
220*110*48
SDS-T150 150w 3*50Pcs 3030  5S10P 150*75° 4.80 710*255*75 720*270*95 60   Driver room:
220*135*48

LED light specification:Cool White 30W LED Street Light manufacturers







Cool White 30W LED Street Light manufacturers

Cool White 30W LED Street Light manufacturers

Cool White 30W LED Street Light manufacturers

Cool White 30W LED Street Light manufacturers

Cool White 30W LED Street Light manufacturers



 Model SDST20W  SDST30W SDST50W SMD SDST60W SMD SDST100W SMD SDST120W  SDST150W
Lamp Power 20W 30W 50W 60W 100W 120W 150W
Lamp Flux 2400LM 3600LM 6000LM 7200LM 12000LM 14400LM 18000LM
Product size(mm) 347*95*65 400*130*65 540x213x50 520x220x70 598x255x45  550x250x70 714x255x50
Material Die-Alu+Lens
Power Factor >0.9
Color Temperature 3000-3500K; 4000-4500K; 6000-6500K
IP Grade IP65
CRI Ra>70
Life Time 50000H
Surger Protector 4KV-6KV
Input Voltage AC85-277V
Body Color Black or Grey
Certificate BIS, SASO, LVD-EMC, RoHs,  IES,  TUV, EAC, ISO9001
